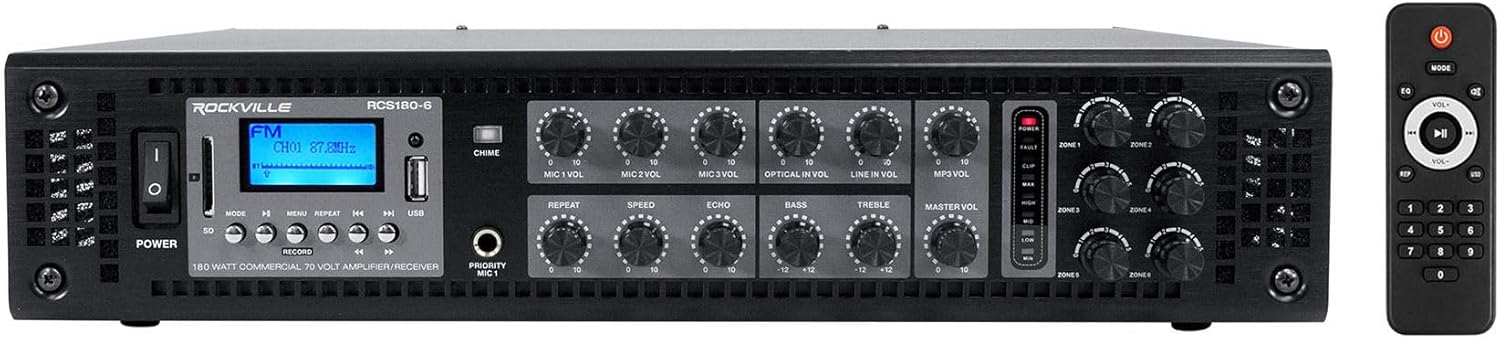

Rockville CC525T Bundle: (4) Pair 5.25-in 70V Commercial in-Ceiling Speakers, RCS180-6 180W 6-Zone Rack Mount Digital Hybrid Amplifier Receiver, Bluetooth, for Bedroom/Living Room/Bathroom, 5-Items
$57.99
Skip to product information
Package Includes: (1) Rockville RCS180-6 180 Watt 6 Zone 70v Commercial/Restaurant Amplifier/Bluetooth. (4) Pair Rockville CC525T Black 5.25" Commercial 70v Ceiling Speakers For Restaurant
6-Zone 70V Amplifier Design: The Rockville RCS180-6 is a 180-Watt digital hybrid rack-mount amplifier built for 70V. 100V. 8 Ohm. and 4 Ohm systems. allowing flexible power distribution across six independent zones with individual volume controls. making it suitable for multi-room home audio such as bedroom. living room. and bathroom installations requiring centralized control.
Power Distribution and Control: The RCS180-6 delivers 180-Watts at 70V and supports splitting output power across up to six zones using euro-block speaker terminals or binding posts. enabling parallel speaker wiring while maintaining consistent output. with built-in clipping limiter protection and an internal cooling system to support long-term. multi-zone operation.
Integrated Inputs and Playback: This amplifier includes Bluetooth audio streaming. USB and SD card playback. FM radio tuner. optical input. RCA line inputs. and three microphone inputs with echo control and chime function. allowing music playback. announcements. and external source integration while maintaining independent zone volume adjustment for controlled audio coverage.

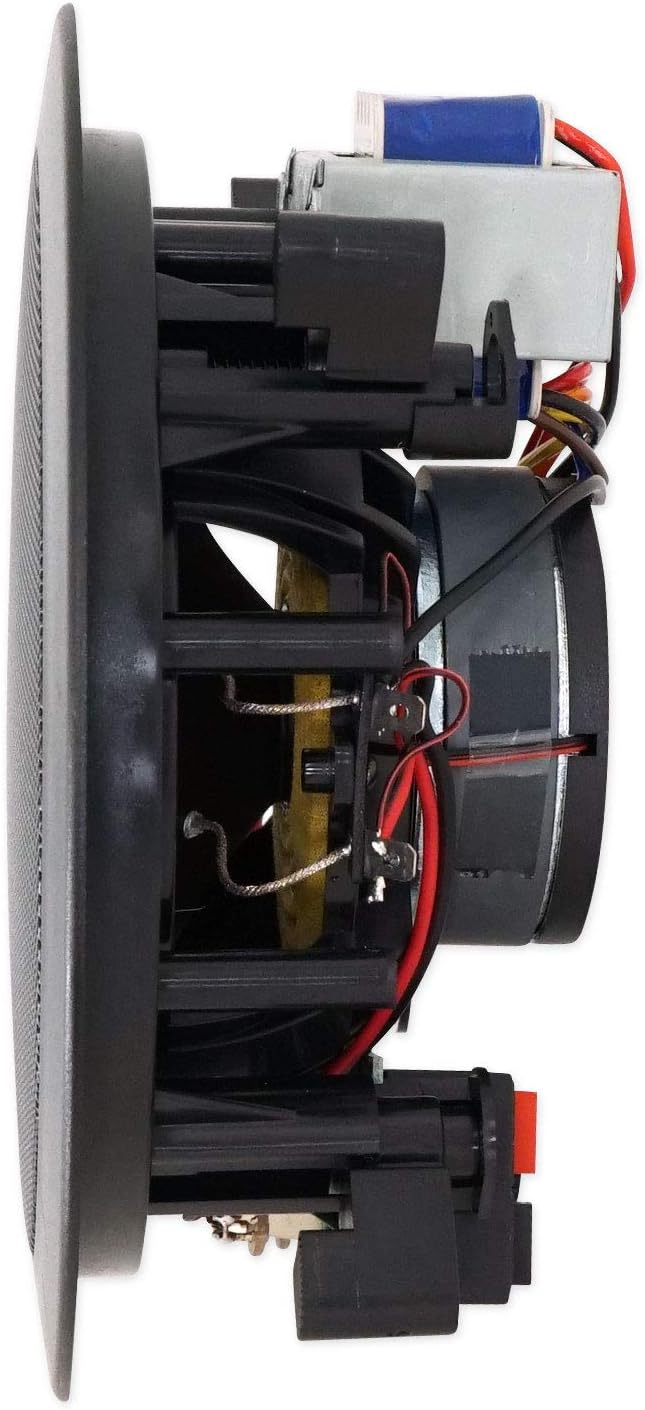

5.25 Inch Ceiling Speaker Performance: The Rockville CC525T Black 5.25" Commercial 70V Ceiling Speakers feature a polypropylene woofer. mylar dome tweeter. selectable 70V tap settings from 2.5-Watts to 20-Watts. 8 Ohm operation at 40-Watts. 80Hz-20kHz frequency response. 88dB sensitivity. 6.5" cutout diameter. and black in-ceiling design for discreet multi-room use.
Rockville CC525T Bundle: (4) Pair 5.25-in 70V Commercial in-Ceiling Speakers, RCS180-6 180W 6-Zone Rack Mount Digital Hybrid Amplifier Receiver, Bluetooth, for Bedroom/Living Room/Bathroom, 5-Items
$57.99
6-Zone 70V Amplifier Design: The Rockville RCS180-6 is a 180-Watt digital hybrid rack-mount amplifier built for 70V. 100V. 8 Ohm. and 4 Ohm systems. allowing flexible power distribution across six independent zones with individual volume controls. making it suitable for multi-room home audio such as bedroom. living room. and bathroom installations requiring centralized control.
Power Distribution and Control: The RCS180-6 delivers 180-Watts at 70V and supports splitting output power across up to six zones using euro-block speaker terminals or binding posts. enabling parallel speaker wiring while maintaining consistent output. with built-in clipping limiter protection and an internal cooling system to support long-term. multi-zone operation.
Integrated Inputs and Playback: This amplifier includes Bluetooth audio streaming. USB and SD card playback. FM radio tuner. optical input. RCA line inputs. and three microphone inputs with echo control and chime function. allowing music playback. announcements. and external source integration while maintaining independent zone volume adjustment for controlled audio coverage.
5.25 Inch Ceiling Speaker Performance: The Rockville CC525T Black 5.25" Commercial 70V Ceiling Speakers feature a polypropylene woofer. mylar dome tweeter. selectable 70V tap settings from 2.5-Watts to 20-Watts. 8 Ohm operation at 40-Watts. 80Hz-20kHz frequency response. 88dB sensitivity. 6.5" cutout diameter. and black in-ceiling design for discreet multi-room use.

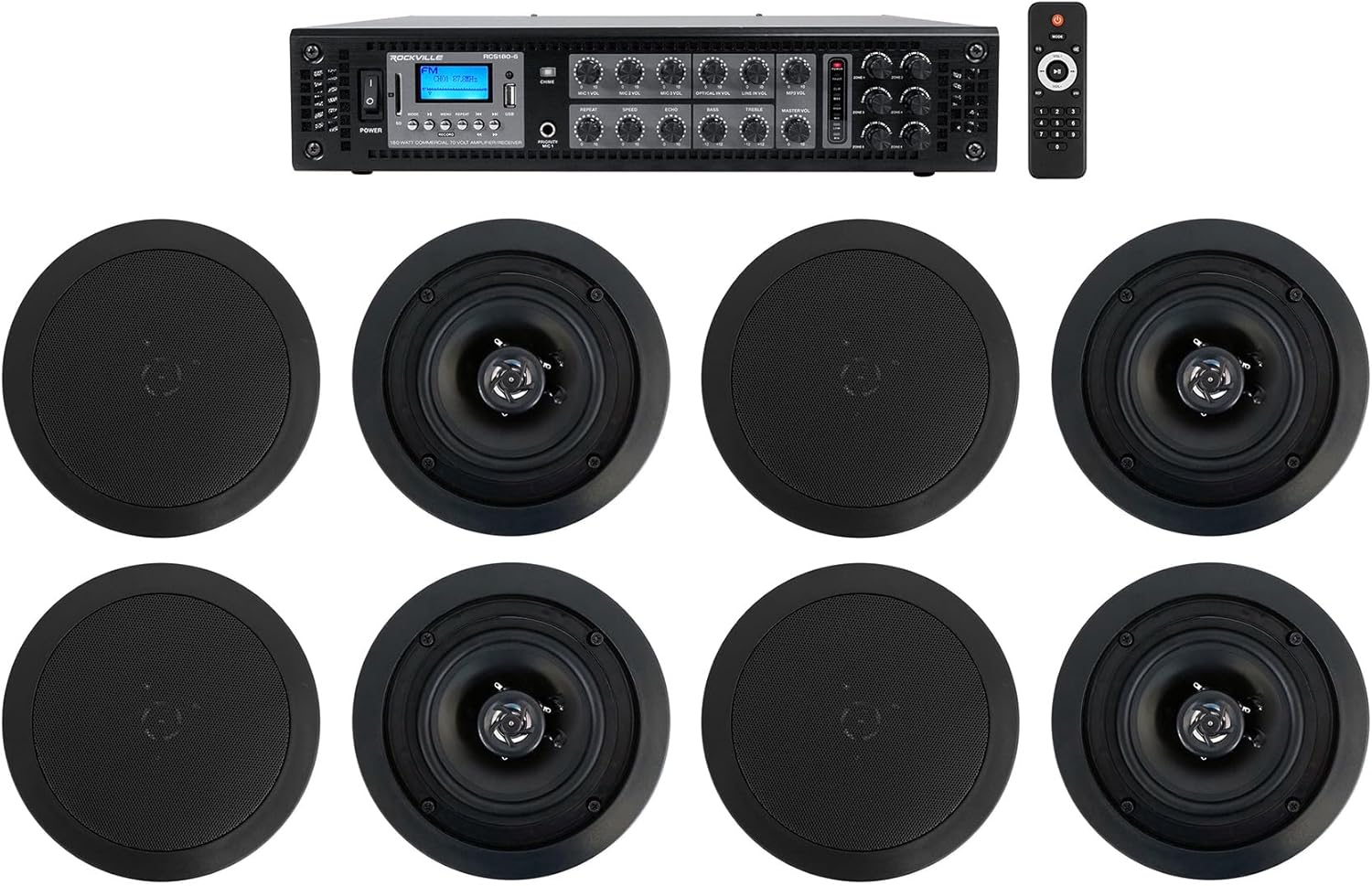

Package Includes:
- (1) Rockville RCS180-6 180 Watt 6 Zone 70v Commercial/Restaurant Amplifier/Bluetooth
- (4) Pair Rockville CC525T Black 5.25" Commercial 70v Ceiling Speakers For Restaurant
Includes:
- Amplifier
- Remote
- Rack mount ears
- Power Cable
- FM Radio antenna
- Owner's manual
Applications:
- Restaurant
- Bar
- Café
- School
- Lounge
- Home (Multi-zone. Multi-room)
- Office
- Warehouse
Features:

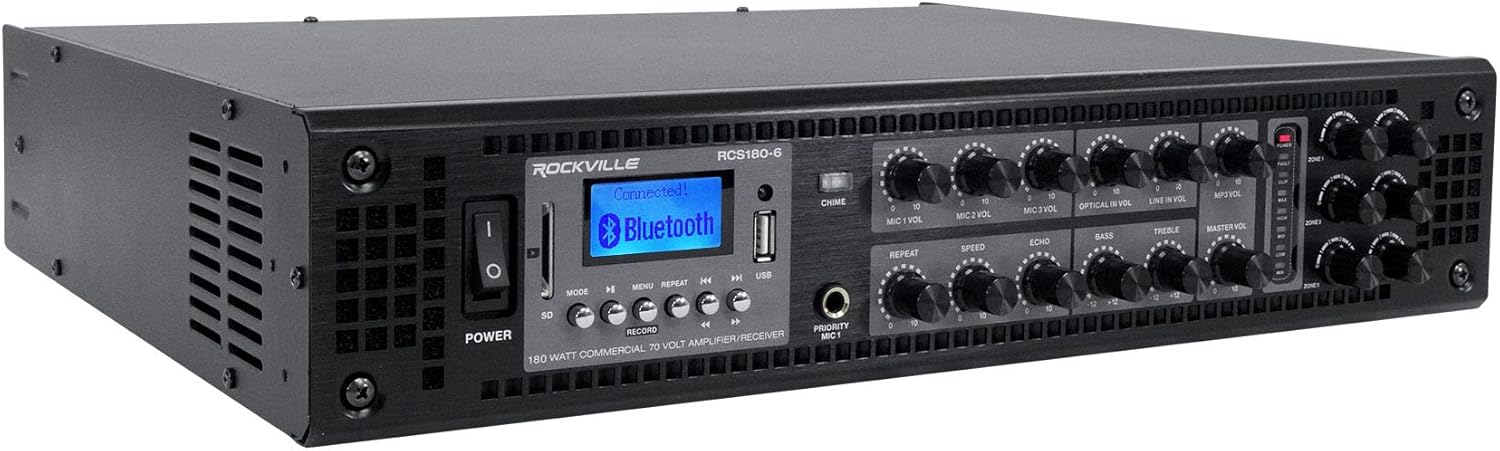

- Rockville RCS180-6350 Watt commercial/restaurant amplifier 19" rack mountable (removable rack brackets) digital hybrid amplifier/receiver
- Capable of 70 volt. 100 volt. 8ohm. and 4 ohm
- 70/100 volt RMS Power: 184 Watts
- 4-16 ohm binding post speaker output
- 6-Zones of speaker outputs - each zone has a separate volume control
- 70 and 100 volt binding post outputs for single zone playback of all 180 watts
- Built in Bluetooth audio streaming
- FM radio tuner
- USB input to play audio stored on a thumb drive (32gb max)
- SD card slot to play music stored on an SD Card (32gb max)
- Separate volume control for MIC1. MIC2. MIC3. MP3. LINE1. LINE 2. and MP3
- Echo control for the mic inputs with speed and repeat adjustments
- Built in clipping limiter to protect the amp and speakers
- BASS and Treble control
- Detachable euro-block speaker output terminals for easy installation
- Chime button for making announcements
- Top quality aluminum panel with industrial grade knobs
- 5 segments signal level indication
- Built in cooling system keeps component cool at all times

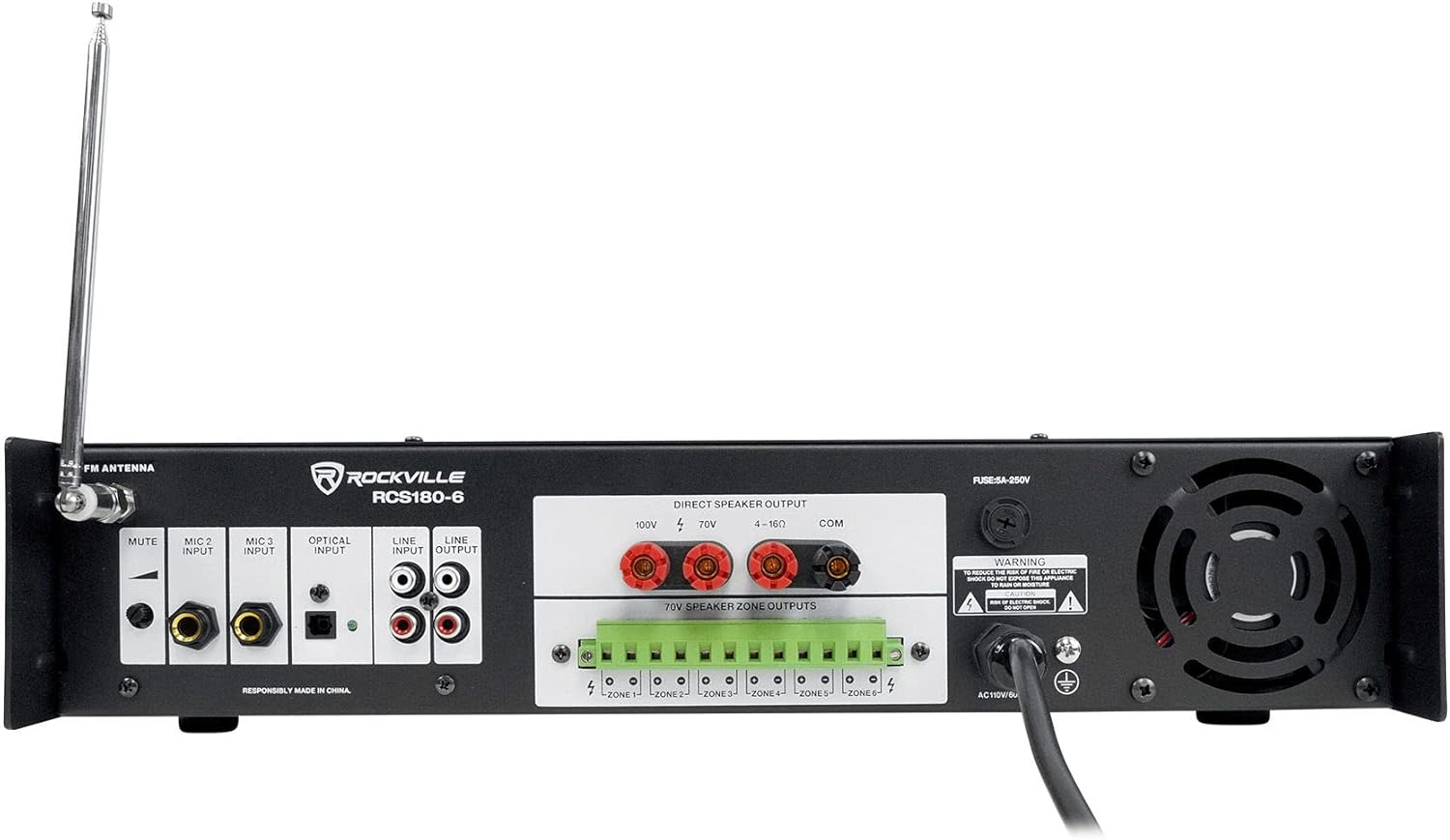

Inputs and Outputs:
- (2) Sets RCA AUX inputs
- (3) Mic inputs
- RCA Line output
- Optical input
- Detachable euro-block speaker output terminals for easy installation
- 100V speaker red positive speaker output terminal
- 70V speaker red positive speaker output terminal
- 8 Ohm red positive speaker output terminal
- Shared negative speaker output terminal
Specifications:
- Power Requirements: 120V / 50-60Hz
- A Weighted Signal to Noise (@ 1W) -68.1dBA
- A Weighted Signal to Noise (referenced to full 4 ohm power) -89.2dBA
- Frequency response: 49Hz to 14.9 Khz
- Frequency Response VS THD+M (worst case across normal bandwidth 1W @ 8 Ohms: 0.89%
- Weight: 22.7lbs
- Dimensions: 19” x 16” x 4” inches
Features:

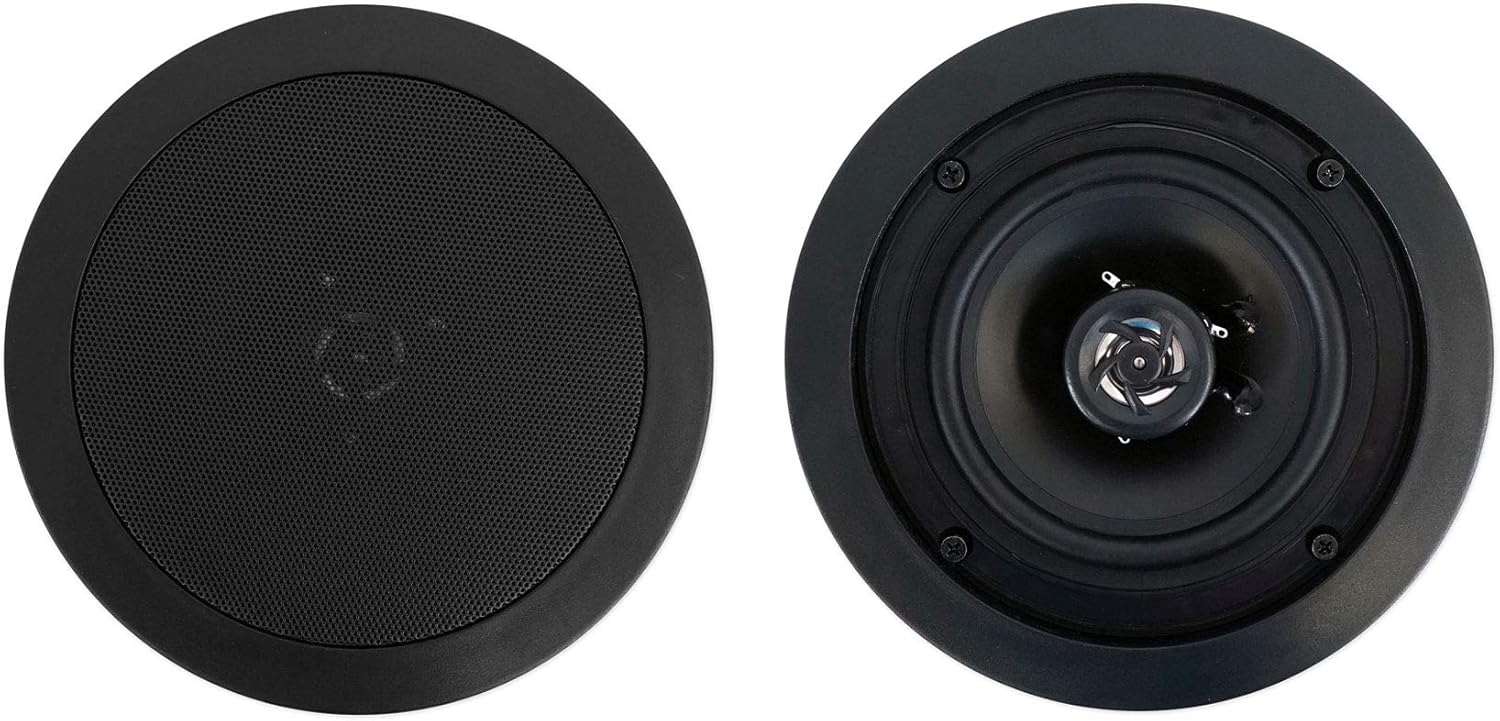

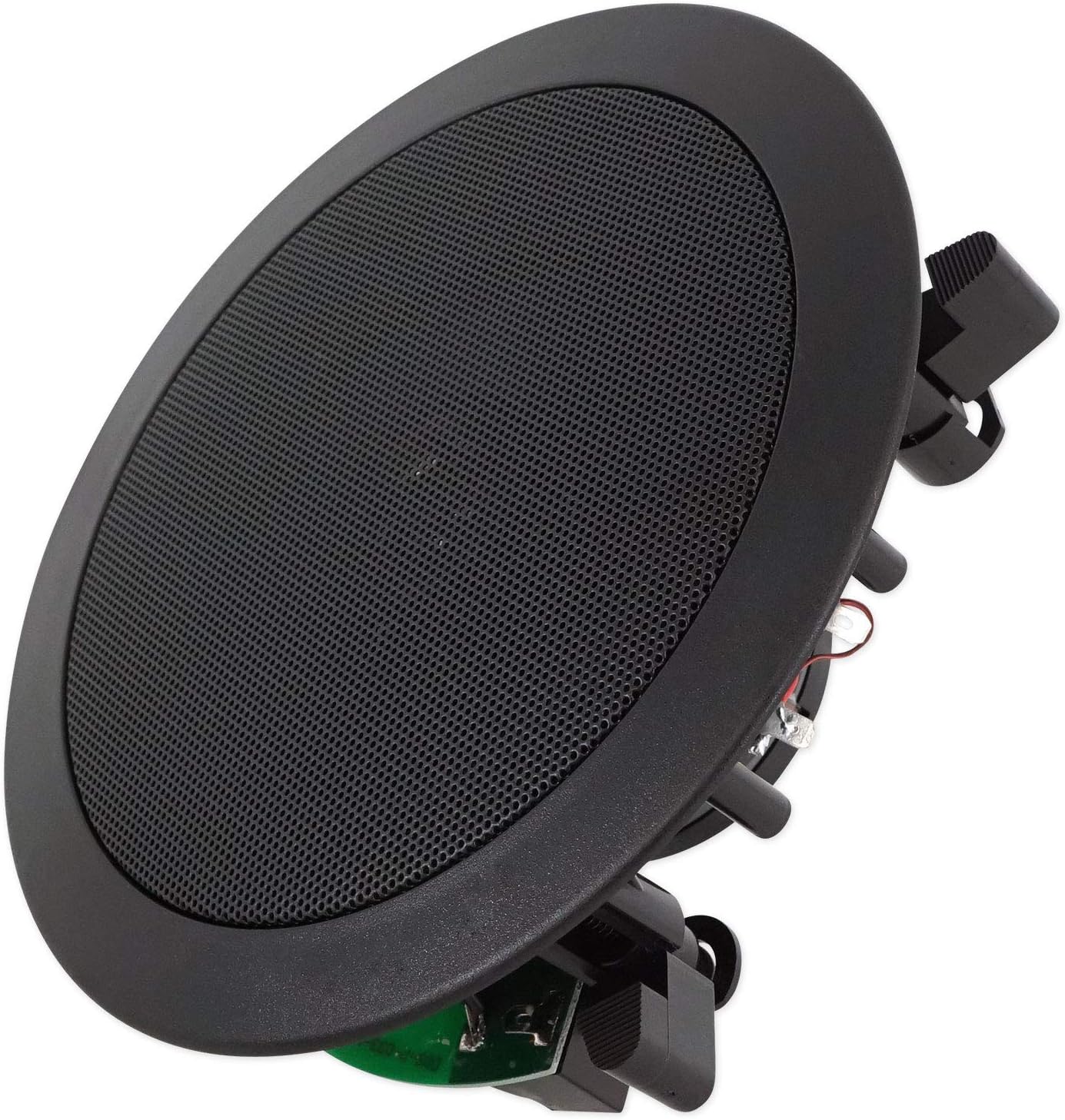

- Pair of Rockville CC525T Black 5.25” Commercial 70v In-Ceiling Speakers for Restaurant/Bar/Cafe
- 70V Power Options: 20w 15w 10w 5w 2.5w
- Polypropylene Cone
- Rubber Surround
- 5.25” Woofer
- 1” Aluminum Voice Coil
- ½” Mylar Dome Tweeter
- 8 oz. Ferrite Magnet
- High Quality Spring Loaded Push Terminals
- Aim-able Swivel Tweeter
- Frequency Response: 80Hz – 20KHz
- Sensitivity: 88dB @ 1w / 1m
- Impedance: 8 Ohms
- Mounting Depth: 2.6”
- Cut-out Diameter: 6.5”
- Color: Black

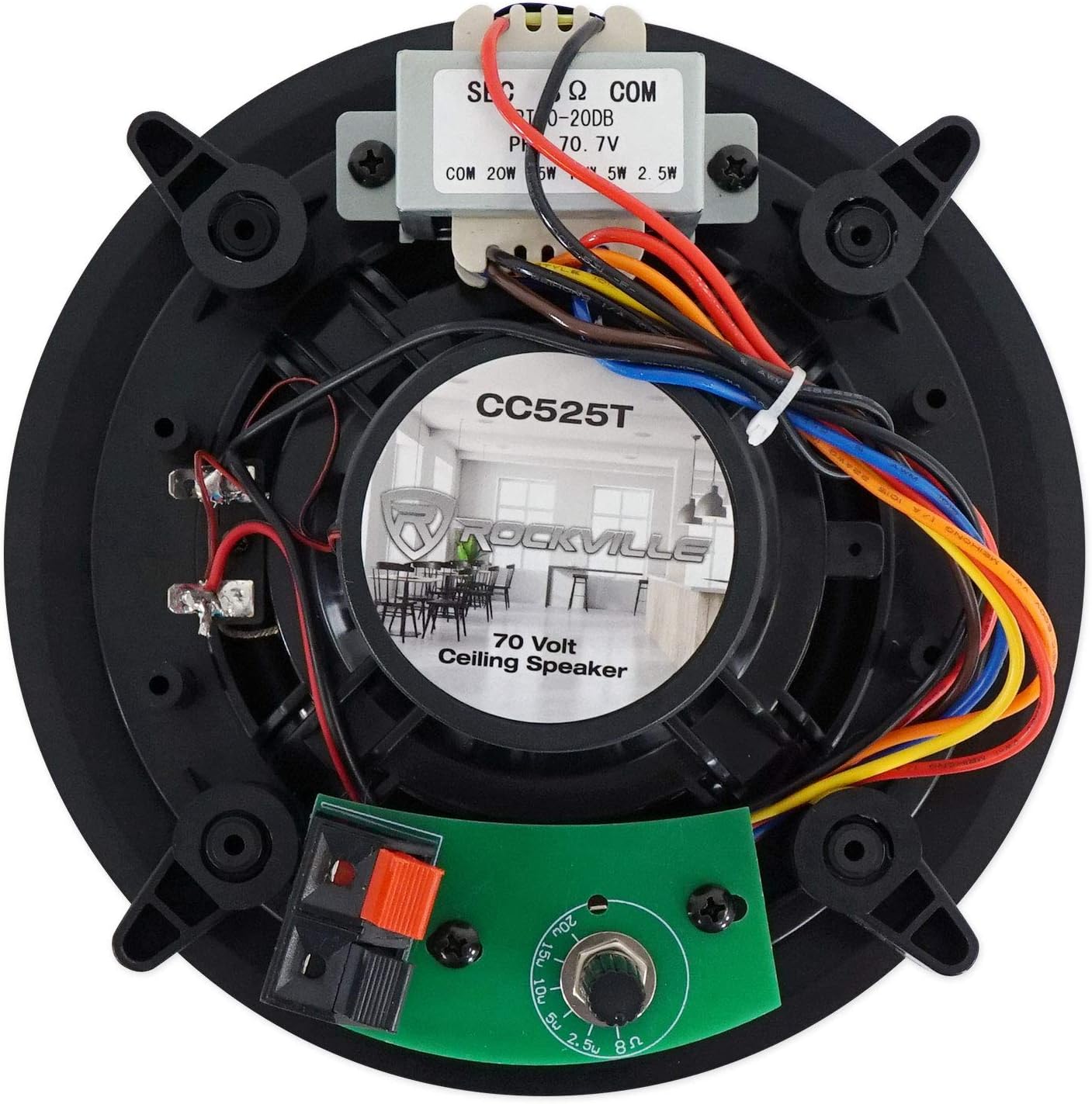

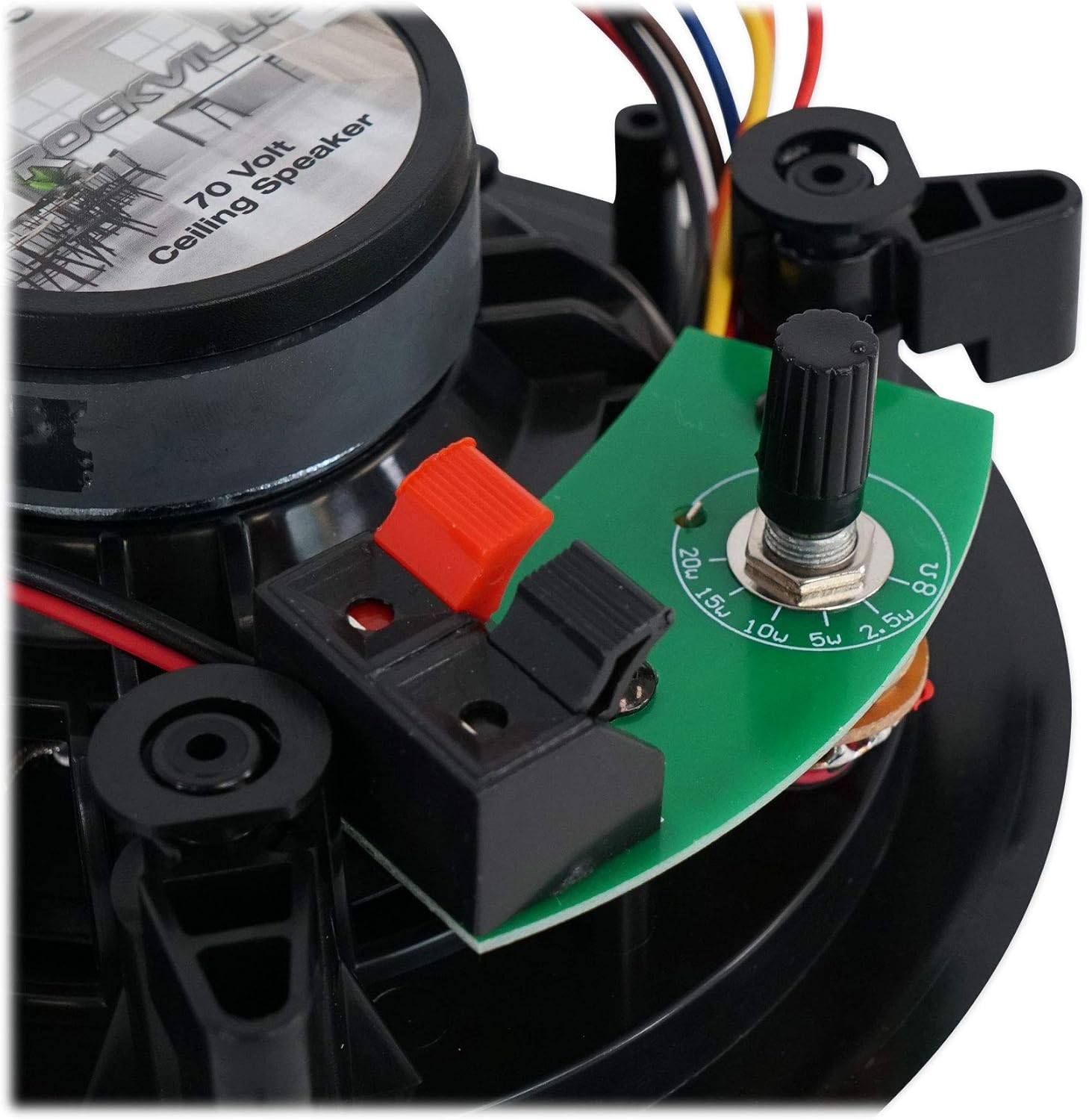

There is a tap switch on the speaker so you can easily select how many watts you want the speaker to get from the amp.
- 70V Power Options: 20w 15w 10w 5w 2.5w
- 8 Ohm power handling: 40w
