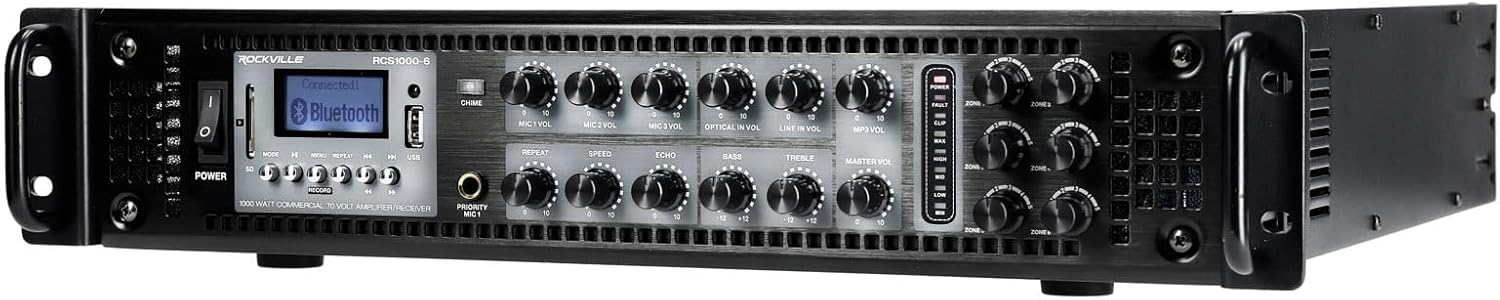

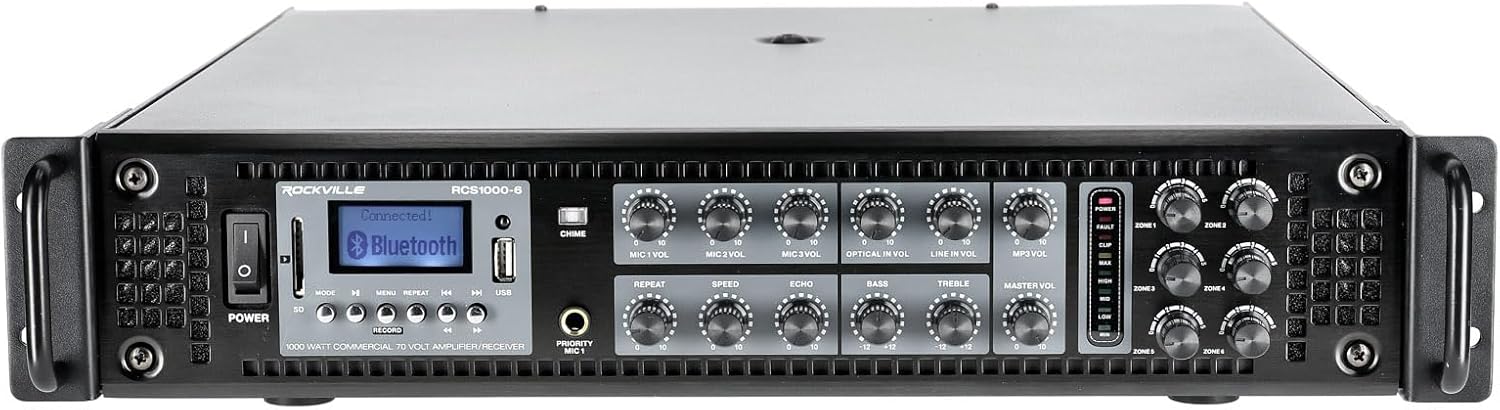

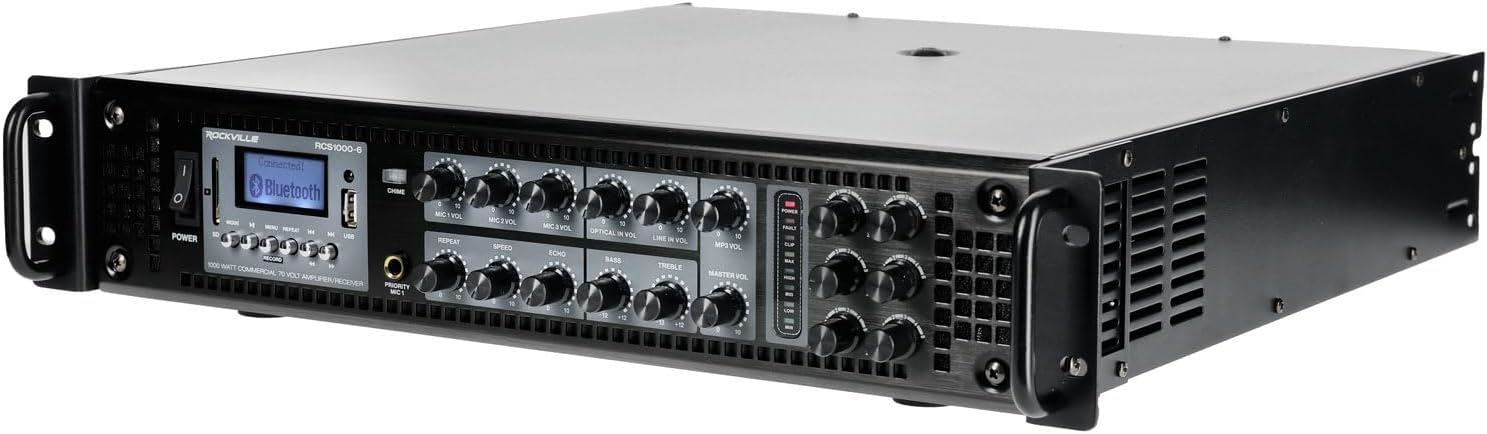

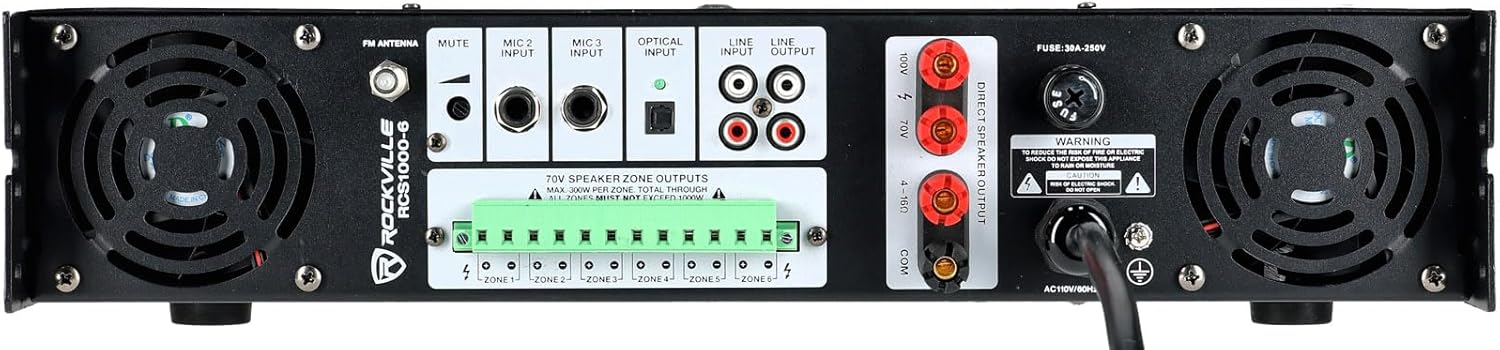

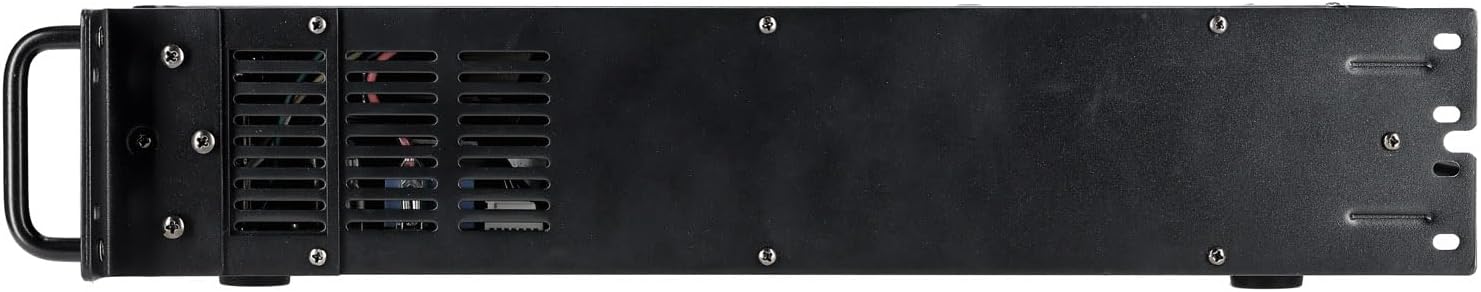

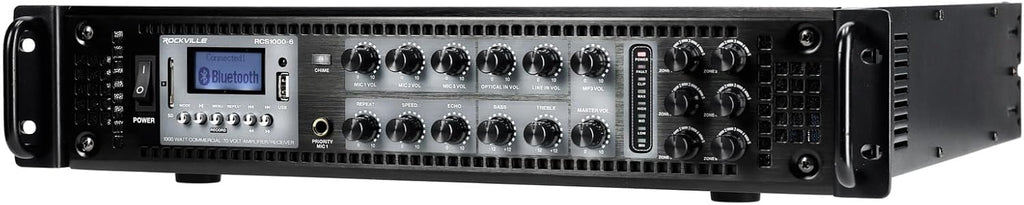

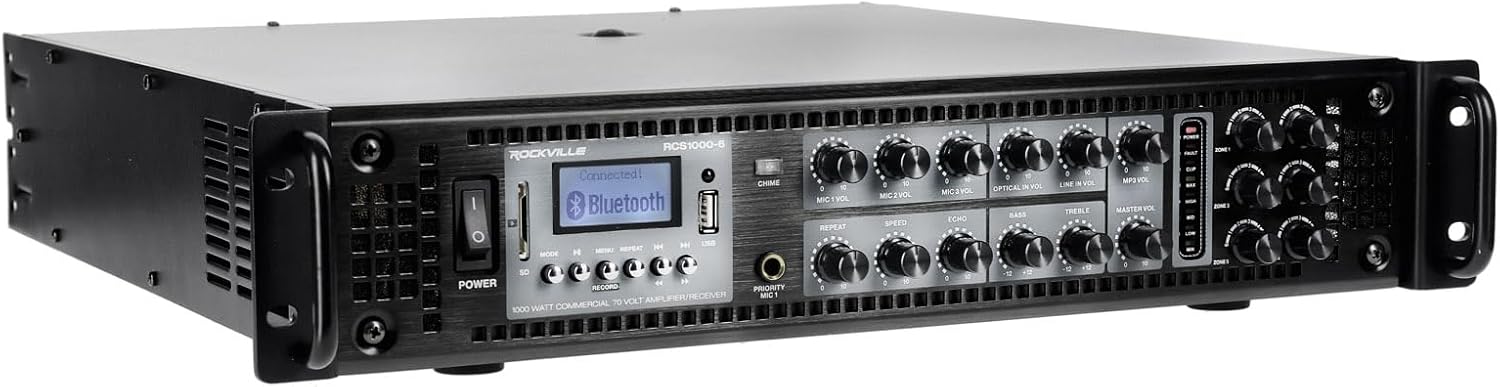

Rockville RCS1000-6 1000W 6-Zone Commercial Amplifier, Bluetooth, USB/SD Inputs, Echo Mic Controls, 70V/100V/8-Ohm Compatibility, Perfect for Restaurants, Schools, and Conference Rooms
Rockville RCS1000-6 1000W 6-Zone Commercial Amplifier, Bluetooth, USB/SD Inputs, Echo Mic Controls, 70V/100V/8-Ohm Compatibility, Perfect for Restaurants, Schools, and Conference Rooms
VERSATILE INPUT OPTIONS WITH REMOTE CONTROL: Includes Bluetooth. USB. SD card. RCA. optical. and FM radio inputs with a remote for easy wireless control. making it easy to manage audio sources.
MICROPHONE INPUTS WITH ECHO: Features three microphone inputs with adjustable echo settings and a chime button for clear and professional announcements. speeches. or karaoke.
DURABLE CONSTRUCTION WITH RACK EARS: Built with a rugged steel chassis and industrial-grade knobs. the amplifier includes rack ears for easy 19" rack mounting in professional setups.
EASY INSTALLATION & 70V FLEXIBILITY: Supports 70V/100V systems with simple parallel wiring. eliminating impedance calculations. ideal for large installations with up to 90 speakers.

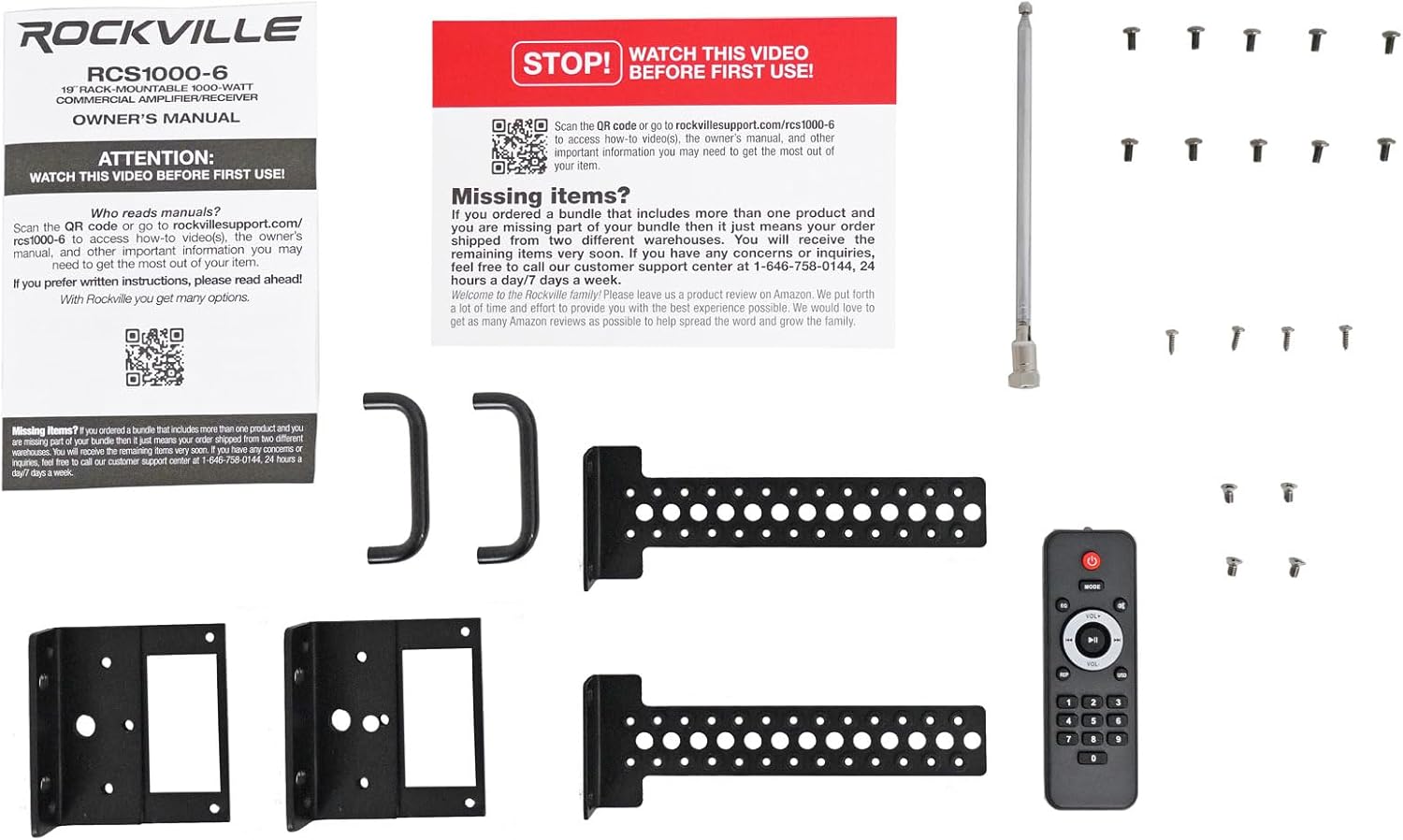

What's in the Box:
- Rockville RCS1000-6 Amplifier
- Remote Control
- Rack Mounting Ears
- Power Cable
- FM Radio Antenna
- Setup and How-To Training Video
Product Overview:
The Rockville RCS1000-6 is a 6-zone rack-mountable commercial amplifier designed for restaurants. cafes. schools. lounges. and other multi-speaker installations. It delivers a total of 1000 watts and supports 70V. 100V. 8-ohm. and 4-ohm configurations. Whether you're running background music in a dining area or announcements throughout a school building. this amplifier provides the flexibility and control needed for professional multi-zone audio.
Key Features:
Powerful Multi-Zone Capability
- 1000 watts total output power
- Use all power in one zone or split across up to 6 zones
- Individual volume controls for each zone (max 300W per zone)
- Easily connect multiple speakers with simple parallel wiring
Flexible Input Options
- Bluetooth streaming for wireless playback
- USB and SD slots (32GB max) for direct media playback
- FM radio tuner
- 2 AUX RCA inputs. 3 microphone inputs with echo control
- Optical input for digital devices
- RCA line output for system expansion
User-Friendly Control
- Independent volume controls for all inputs and zones
- Dedicated bass. treble. and echo adjustments
- Chime function for paging or announcements
- Signal level indicator for quick monitoring
Durable and Reliable Design
- 19" rack-mountable chassis with removable brackets
- Built-in cooling system and clipping limiter for protection
- High-quality aluminum front panel and sturdy industrial knobs
Technical Specifications:
- RMS Output: 1000W at 70V / 100V
- Signal-to-Noise Ratio: 87.3dBA (full power)
- Frequency Response: 40Hz – 24kHz
- THD+N: 0.17% at 5W @ 8 ohms
- Power Requirement: 120V / 50–60Hz
- Product Weight: 45.8 lbs
- Dimensions: 19” x 18.1” x 4” (inches)
Why Choose a 70V System?
70V audio systems are ideal for installations with many speakers spread over large areas. With this format. you can:
- Run long distances of wire without signal loss
- Easily scale your system by adding or reducing speaker wattage
- Tap each speaker to different watt levels to tailor volume for specific areas
- Mix ceiling speakers. wall mounts. and subs in the same setup
- Simplify wiring—connect all speaker positives to the amp's 70V positive terminal and all negatives to the shared ground
Whether you're installing 10 or 90 speakers. the RCS1000-6 is designed to make setup simple and efficient. even for first-time users.
