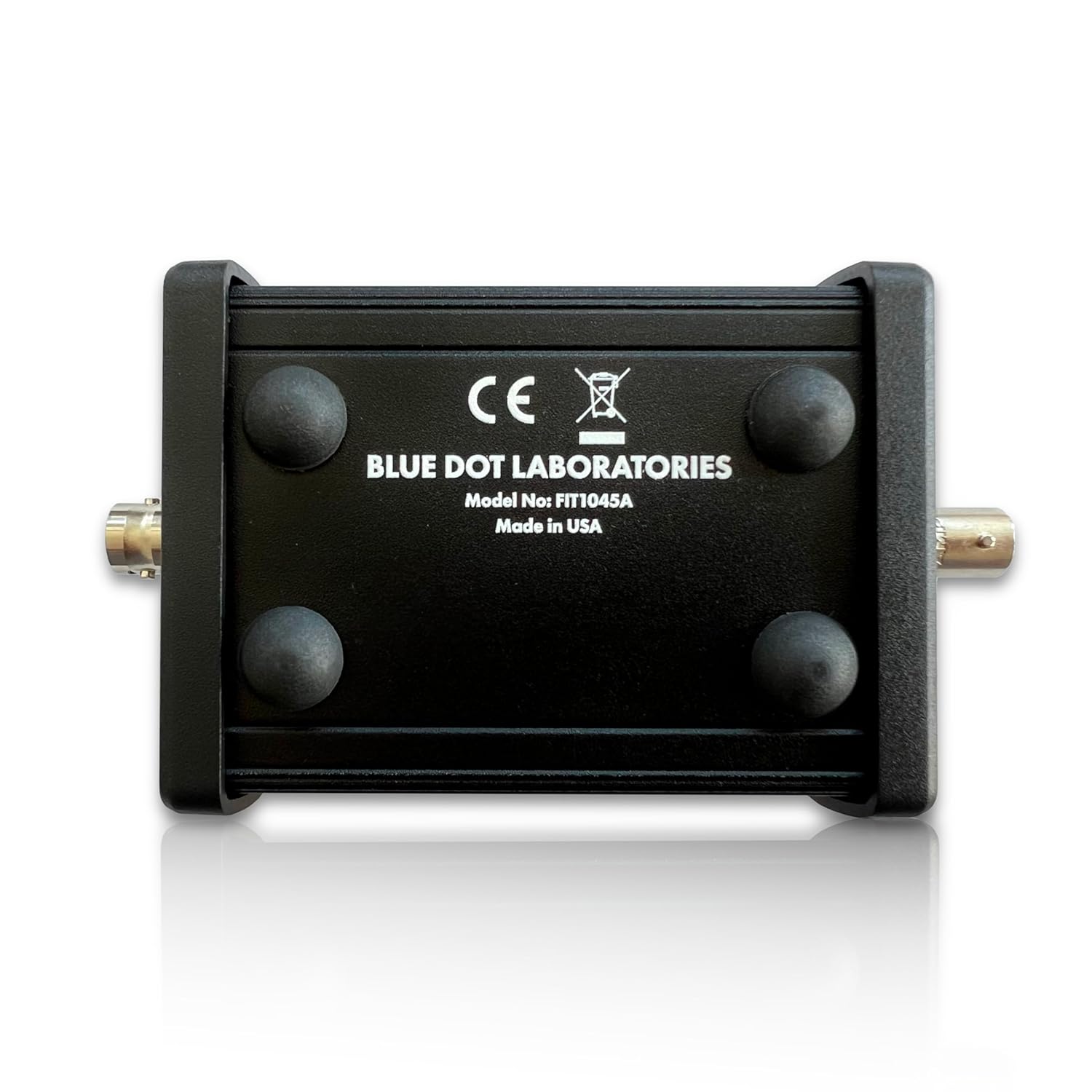

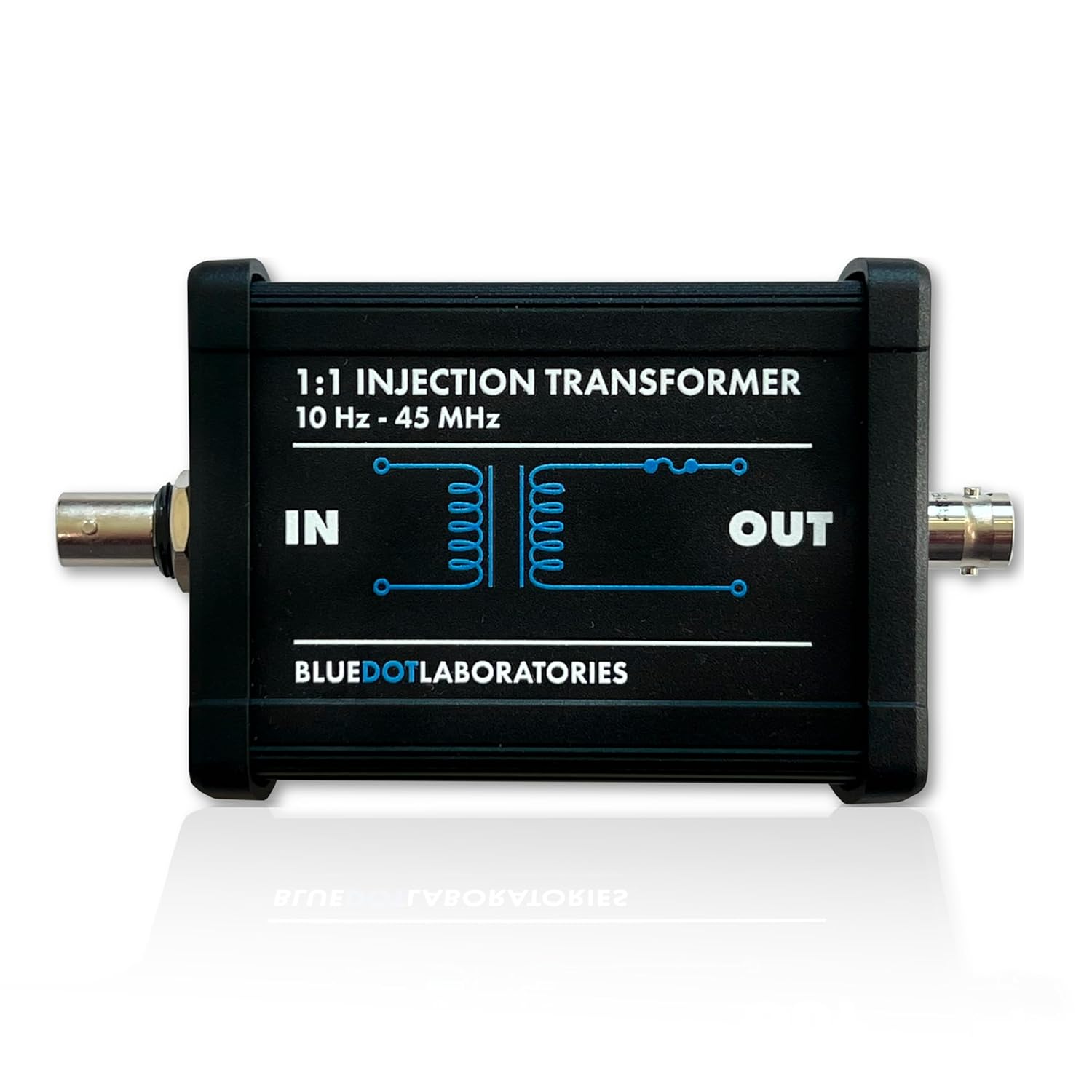

Signal Injection Transformer (FIT1045A)
$59.99
Skip to product information
Wide usable bandwidth -- 10 Hz to 45 MHz
High saturation current limit -- 14.75mA (at 10 kHz)
High maximum working voltage -- 500Vrms (isolation withstanding)
Low interwinding capacitance -- 85pF at 3MHz
50 Ohm BNC input/output connectors
Contains fast-blow fuse for fault interruption
Product packaged in a rugged powder-coated aluminum enclosure that is scratch resistant and sits firmly on rubberized feet
Designed and assembled in USA. For a detailed product description. application notes. and more. visit our website.
-
