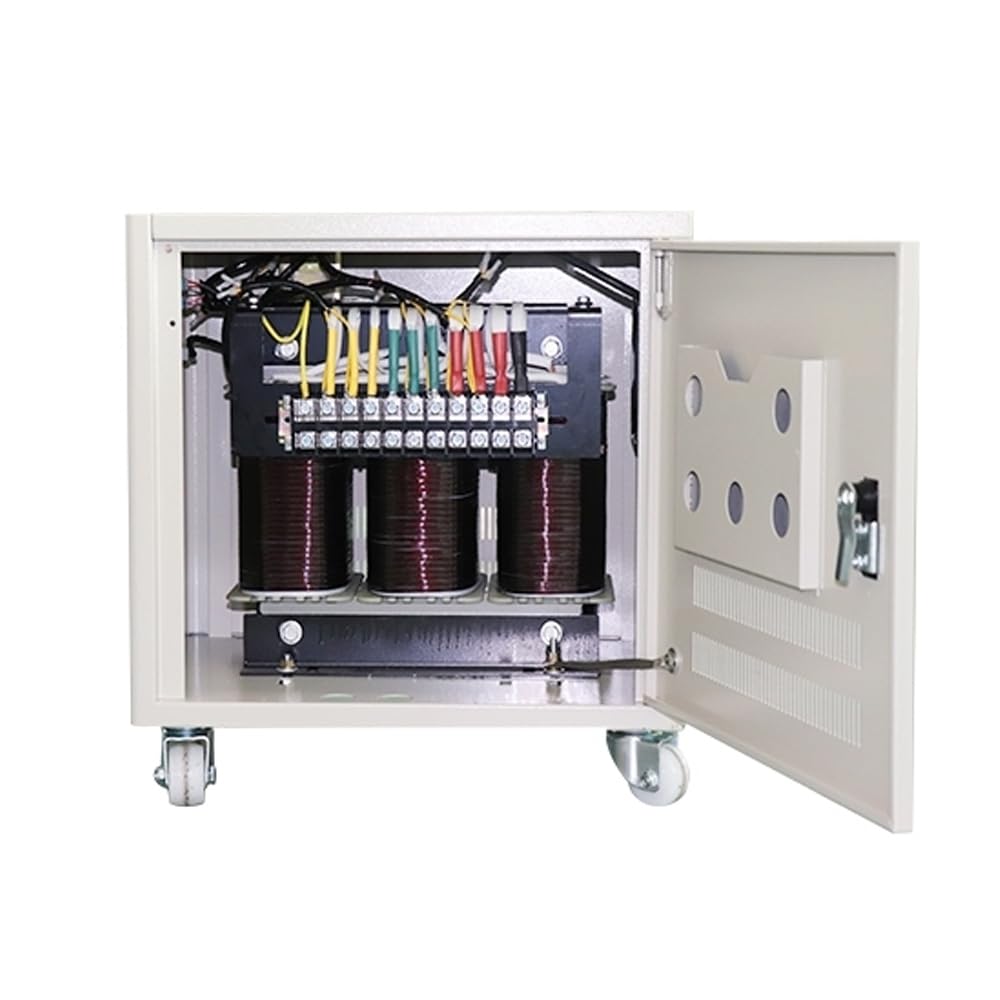

1 kVA Isolation Transformer 240V to 240V, Single Phase 240volt Isolation Transformer

1 kVA Isolation Transformer 240V to 240V, Single Phase 240volt Isolation Transformer

$53.99
Skip to product information
1 kVA Isolation Transformer 240V to 240V, Single Phase 240volt Isolation Transformer
  • 1 kVA Isolation Transformer 240V to 240V, Single Phase 240volt Isolation Transformer
  • 1 kVA Isolation Transformer 240V to 240V, Single Phase 240volt Isolation Transformer
  • 1 kVA Isolation Transformer 240V to 240V, Single Phase 240volt Isolation Transformer
  • 1 kVA Isolation Transformer 240V to 240V, Single Phase 240volt Isolation Transformer
  • 1 kVA Isolation Transformer 240V to 240V, Single Phase 240volt Isolation Transformer
  • 1 kVA Isolation Transformer 240V to 240V, Single Phase 240volt Isolation Transformer
1 kVA Isolation Transformer 240V to 240V, Single Phase 240volt Isolation Transformer

1 kVA Isolation Transformer 240V to 240V, Single Phase 240volt Isolation Transformer

$53.99

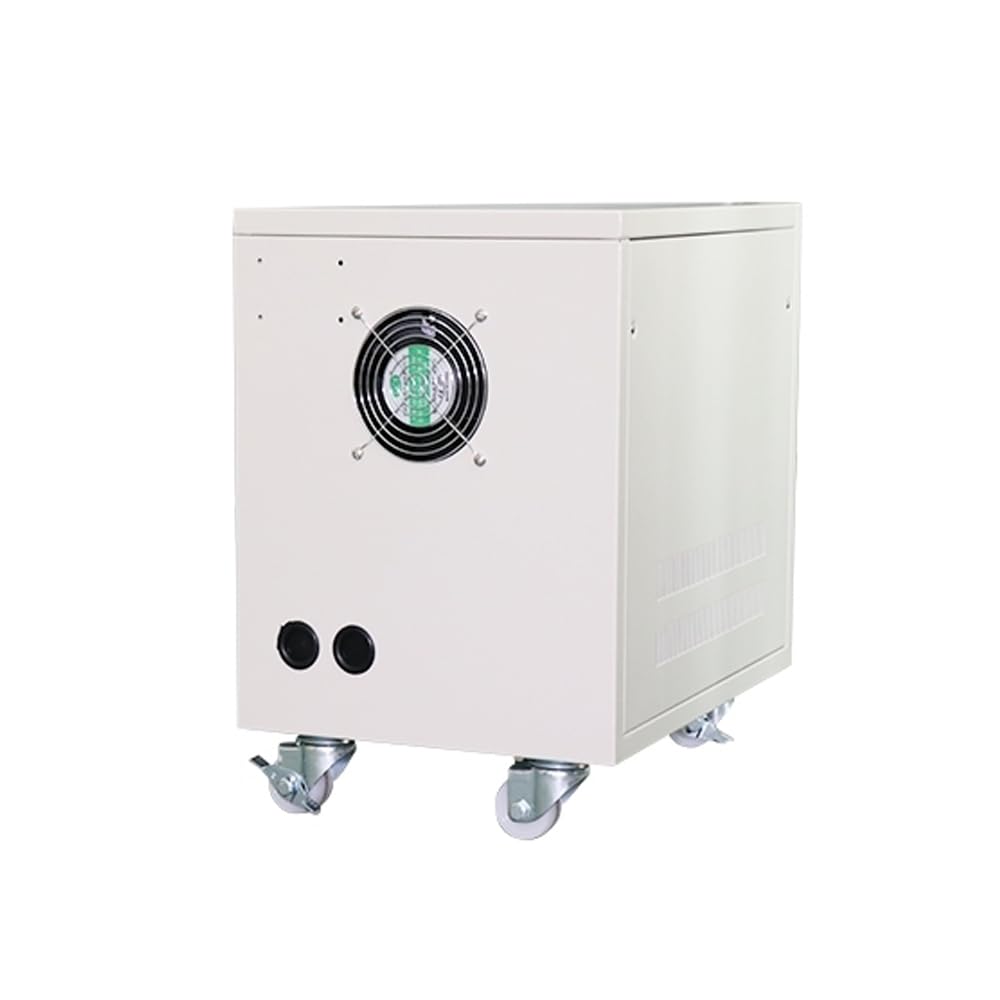

【Efficient Heat Dissipation】This Isolation Transformer 240V to 240V features a multi-hole enclosure design and rear cooling fan for strong heat dissipation. protecting internal components;**Winding Material: Copper wire

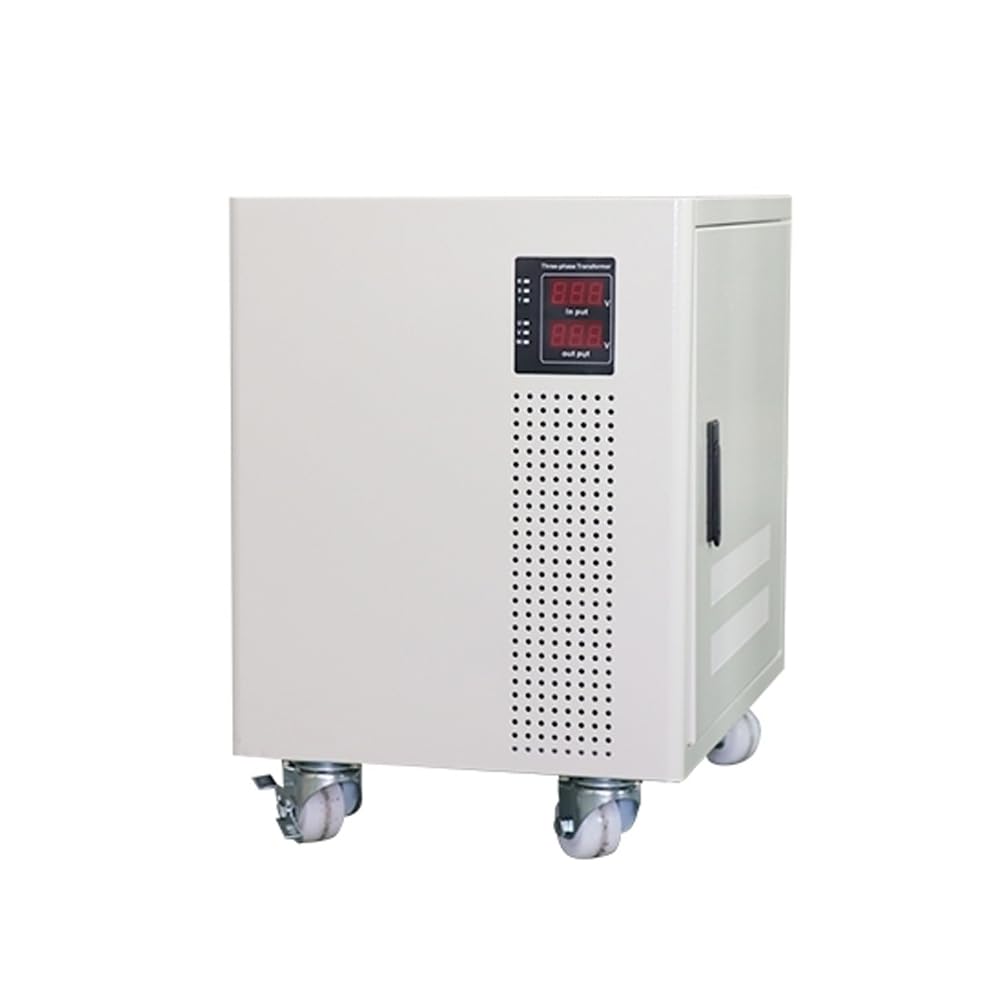

【Precision Monitoring】The 240Volt Isolation transformer includes an LCD digital display meter with two-color indicators for accurate voltage display. enhancing performance and visibility
【High Temperature Resistance】Made with high-temperature resistant enameled wire. the isolation transformer withstands temperatures up to 180℃. providing excellent insulation and a longer lifespan
【Optimized Magnetic Properties】Constructed from cold-rolled oriented silicon steel sheet. it offers low core loss. good magnetization. and efficient heat dissipation
【Long-term continuous work】 Designed for long-term continuous operation with a wide range of loads. it handles transient overloads. ensuring reliable performance

If you don't see the primary/ secondary voltage you need. please let us know. We offer the following voltage options:

1.Primary Voltage: 120V. 190V. 208V. 220V. 230V. 240V. 380V. 400V. 415V. 440V. 460V. 480V

2.Secondary Voltage: 120V. 190V. 208V. 220V. 230V. 240V. 380V. 400V. 415V. 440V. 460V. 480V

Cooling ModeNatural or air coolingInsulation Resistance≥50 MΩElectrical Strength 2000V AC/1 minNoise ≤35dB (1 meter)Insulation GradeGrade B (130℃). Grade F (155℃). Grade H (180℃)Overload CapacityAllow more than 1.2 times rated load to work for up to 1 hourTestInduced Overvoltage Withstand Test: 125Hz/800V/minImpedance Voltage About 6%Total Losses10%CertificationCE. ISOTemperature-15℃~+45℃ Enclosure Protection GradeIP20NoteSupport Customization

Customizable: We can customize other specifications based on your needs. If you require different specifications. please feel free to inquire.

  • Heat dissipation holes and fansT
  • wo-color indicatorH
  • igh temperature resistant enameled wireO
  • riented silicon steel sheetL
  • ong-term continuous workU
  • niversal castersS
  • trong Enclosure

Note: 1. Transformer can only convert voltage and CANNOT convert frequency. 2. Transformer CANNOT convert single phase voltage to 3 phase voltage. 3.Support voltage customization. various specifications customization.

  • How does the heat dissipation system of this single phase isolation transformer work?

    This isolation transformer features a multi-hole design. This system effectively dissipates heat. reducing the machine's temperature and protecting internal components. ensuring long-term reliability and performance.

  • What are the benefits of using high temperature resistant enameled wire in this isolation transformer?

    The high temperature resistant enameled wire in this isolation transformer withstands up to 180℃. offering excellent insulation and durability. This prolongs the machine's lifespan. making it a reliable choice for demanding applications.

  • How do the universal casters enhance the usability of this single phase isolation transformer?

    The GoHz isolation transformer is equipped with four universal wheels that rotate 360 degrees.This design makes it easy to move and maneuver. providing flexibility and energy-saving benefits. ideal for various settings requiring frequent relocation

    • If you're having trouble finding the right specifications or don't know which ones to choose. just tell us your requirements. and we'll help you find the perfect model.

    If you don't see the primary or secondary voltage you need. please let us know. We offer the following voltage options:

    1.Primary Voltage Options: 120V. 190V. 208V. 220V. 230V. 240V. 380V. 400V. 415V. 440V. 460V. 480V

    2.Secondary Voltage Options: 120V. 190V. 208V. 220V. 230V. 240V. 380V. 400V. 415V. 440V. 460V. 480V

    An isolation transformer is a device that transfers AC electrical power from the primary side to the secondary side without a direct electrical connection between the two. ensuring safety and reliability in electrical and engineering applications.

    By electrically isolating the primary and secondary circuits. isolation transformers eliminate the risk of direct current flow between them. thereby minimizing the potential for electrical shock hazards.

    Single Phase Customizable Isolation Transformer Technical Specifications

    Schematic Diagram of GoHz 1 Phase Isolation Transformer

    GoHz Single toSingle PhaseIsolation TransformerFeatures

    How does the heat dissipation system of this single phase isolation transformer work?

    What are the benefits of using high temperature resistant enameled wire in this isolation transformer?

    How do the universal casters enhance the usability of this single phase isolation transformer?

    Tips 1

    Tips 2

    What is an isolation transformer?

    How do isolation transformers enhance safety?
